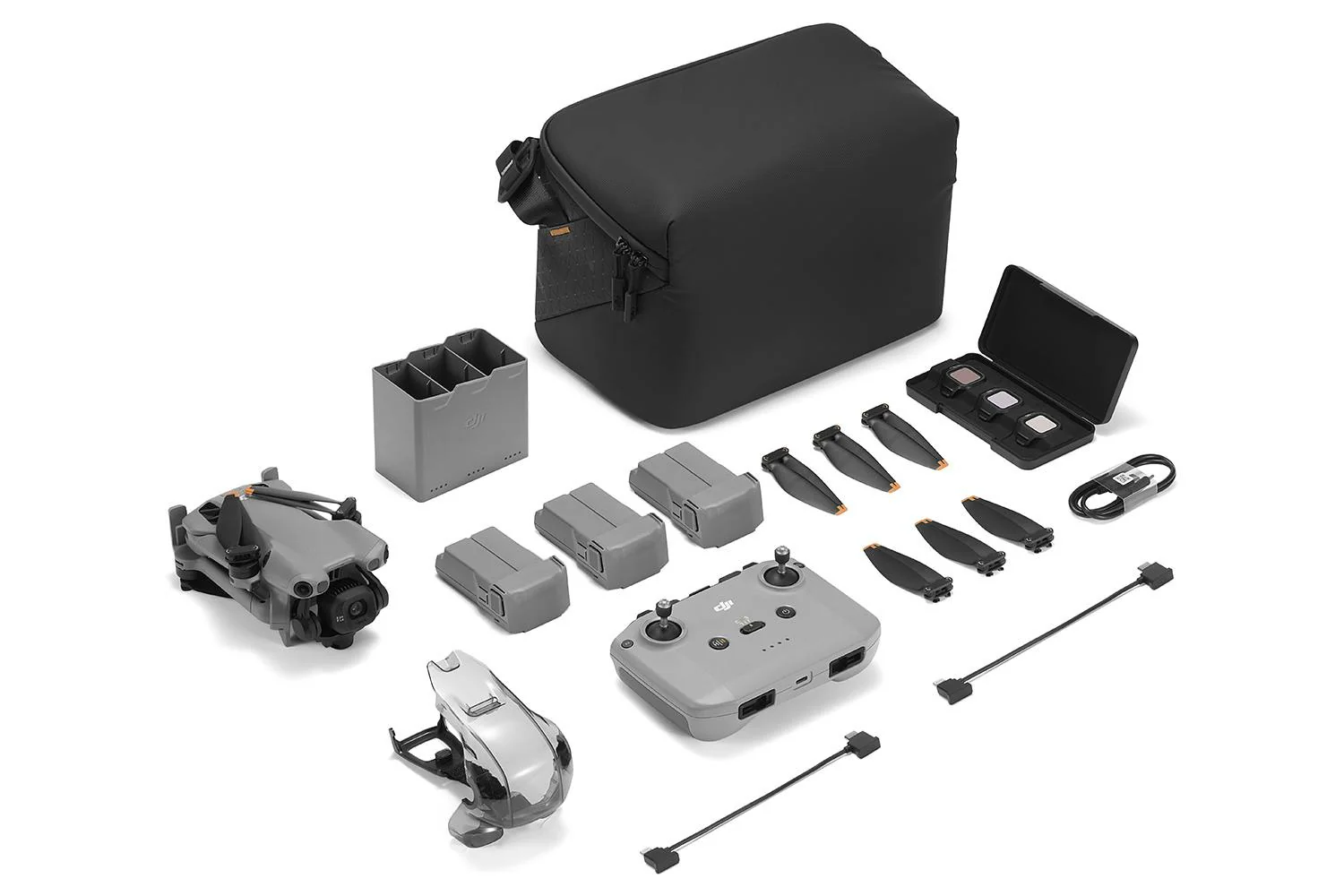

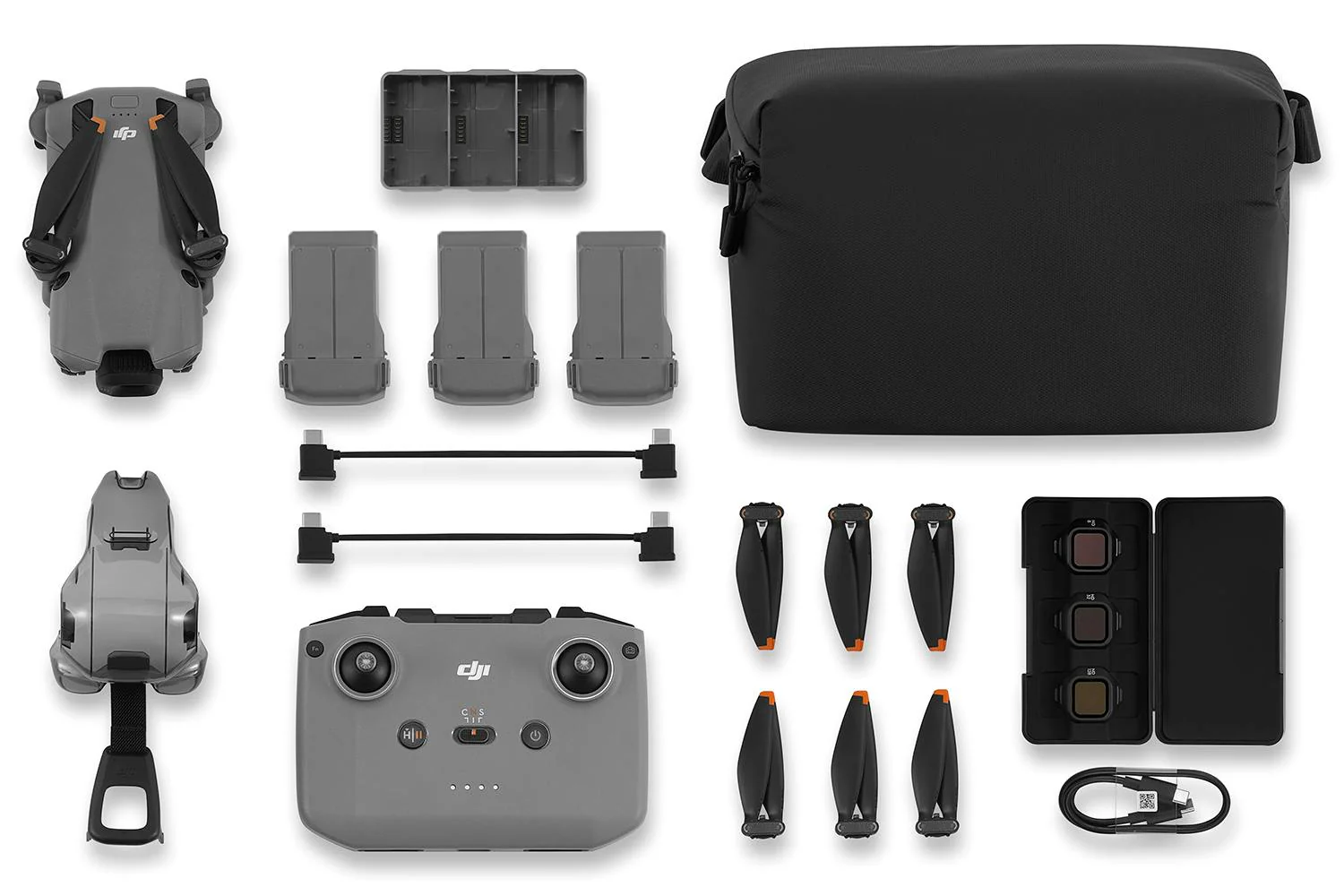

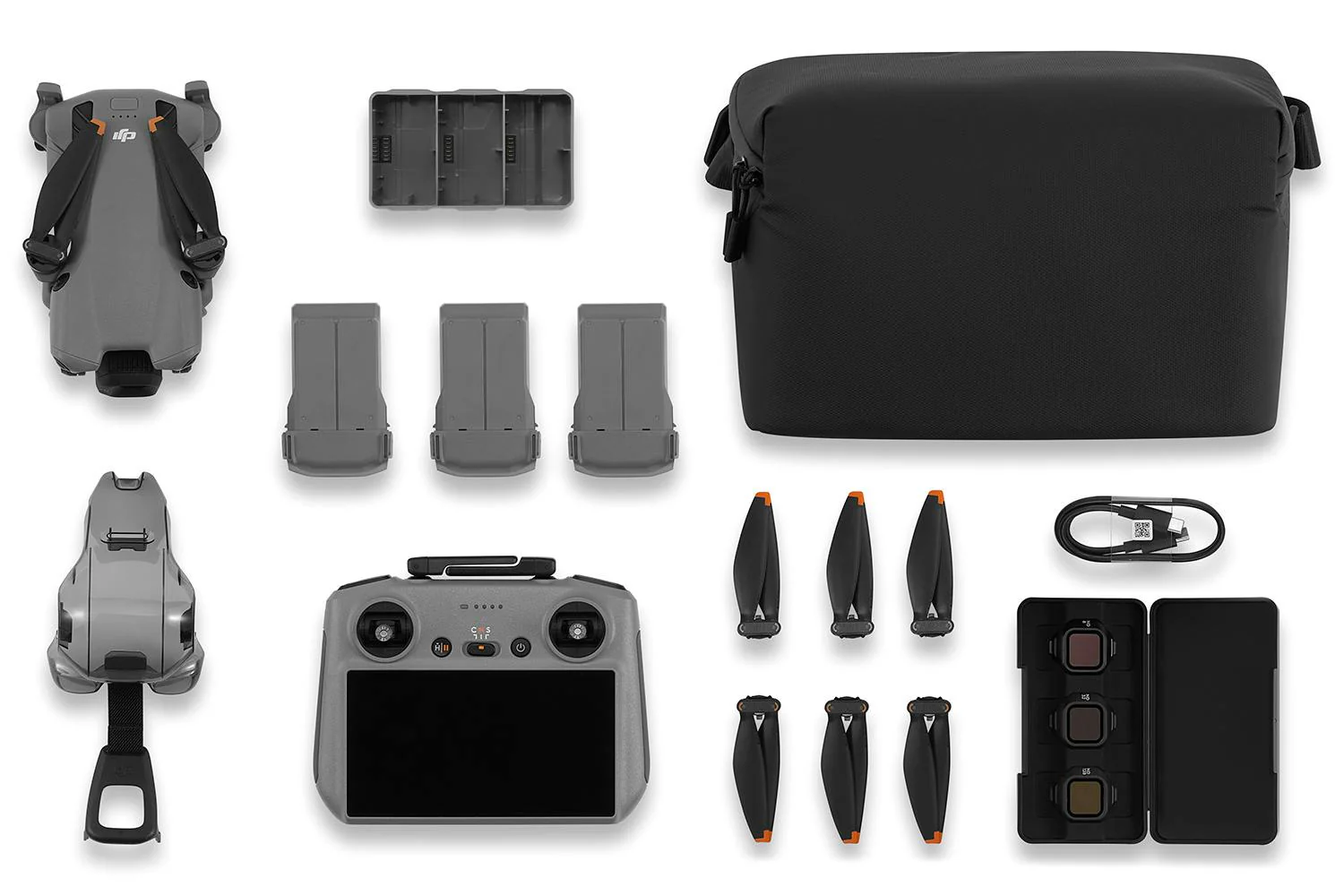

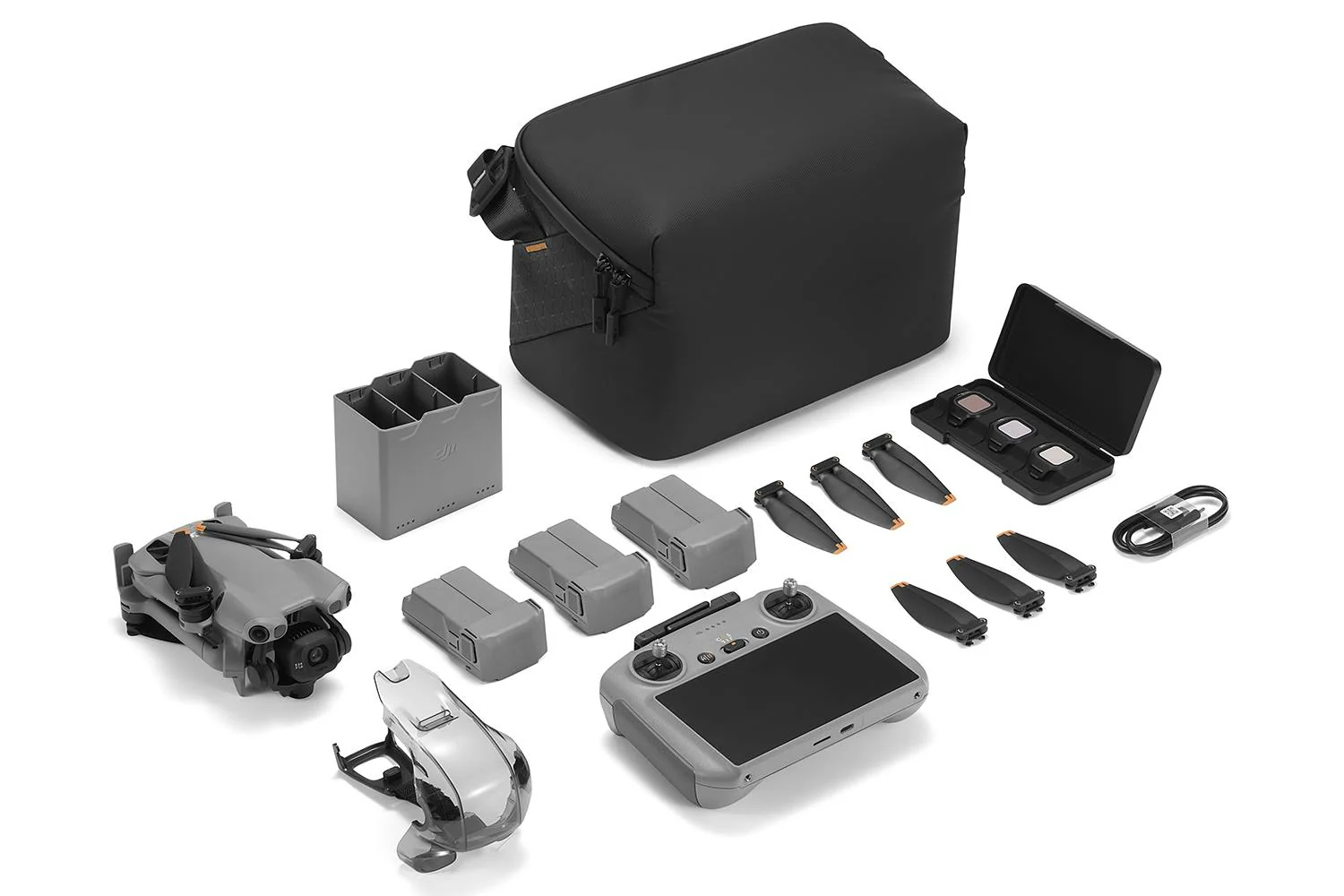

DJI Mini 5 Pro Fly More Combo

---

All-In-One Combos and Accessories for Creators

DJI Mini 5 Pro offers a variety of combos and accessories to fit any flight scenario. ND filters adapt to different lighting conditions for stunning shots, while the Intelligent Flight Battery provides extended flight time. The Two-Way Charging Hub efficiently recharges batteries and transfers remaining power to a single battery when needed, so you’re always ready to capture the moment.[1]

---



Aircraft

Takeoff Weight

• 249.9 g

Dimensions

• Folded (without propellers): 157 × 95 × 68 mm (L × W × H)
• Unfolded (with propellers): 255 × 181 × 91 mm (L × W × H)

Max Ascent Speed

• 10 m/s (S Mode)
• 5 m/s (N Mode)
• 5 m/s (C Mode)

Max Descent Speed

• 8 m/s (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])
• 6 m/s (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery)
• 5 m/s (N Mode)
• 5 m/s (C Mode)

Max Horizontal Speed

• 19 m/s* (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])
• 18 m/s* (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery)
• 15 m/s** (tracking status)

* Measured in a wind tunnel test environment when taking off from an altitude of 0 meter and ascending vertically to a height of 1.5 meters above the ground in Sport mode, and is for reference only. Always pay attention to reminders on the camera view during your flight.

** Measured in an open, windless test environment with the drone taking off from an altitude of 0 meters.

Max Takeoff Altitude

• 6000 m (using DJI Mini 5 Pro Intelligent Flight Battery)
• 4500 m (using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])

Max Flight Time

• 36 minutes (using DJI Mini 5 Pro Intelligent Flight Battery)
• 52 minutes (using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])

Measured by the aircraft flying forward at a constant speed of 21.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.

Measured by the aircraft flying forward at a constant speed of 25.2 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.

Typical Flight Time

• 21 minutes (using DJI Mini 5 Pro Intelligent Flight Battery)
• 33 minutes (using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])

Measured at sea level in a breezy environment, with the aircraft taking off with a fully charged battery, Obstacle Avoidance Action set to Brake, and the camera set to record at 4K/60fps. After takeoff, the aircraft ascends to 120  m and flies forward 1 km at 15 m/s before recording begins (about 15 minutes of recording with the Intelligent Flight Battery, and about 20 minutes with the Intelligent Flight Battery Plus). During recording, the aircraft adjusts gimbal movements and its flight position at speeds of up to 10 m/s over a total distance of approximately 2 km, while hovering for the remaining time. The aircraft hovers until a RTH reminder appears, then initiates auto RTH and completes a safe landing. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Flight Distance

• 21 km (using DJI Mini 5 Pro Intelligent Flight Battery)
• 32 km (using DJI Mini 5 Pro Intelligent Flight Battery Plus[2])

Measured by the aircraft flying forward at a constant speed of 39.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Wind Speed Resistance

• 12 m/s

Max Pitch Angle

• 38°

Operating Temperature

• -10° to 40° C (14° to 104° F)

Global Navigation Satellite System

• GPS + Galileo + BeiDou

Hovering Accuracy Range

• Vertical: ±0.1 m (with vision positioning), ±0.5 m (with satellite positioning)
• Horizontal: ±0.3 m (with vision positioning), ±0.5 m (with satellite positioning)

Class

• C0 (EU), with the option to apply for C1 (EU) in the DJI Fly app

---



Camera

Image Sensor

• 1-inch CMOS, 50MP Effective Pixels

Lens

• FOV: 84°
• Format Equivalent: 24 mm
• Aperture: f/1.8<
• Focus: 0.5 m to ∞

ISO Range

• Video Normal: 100-12800 (Normal), 100-3200 (D-Log M), 100-3200 (HLG)
• Slow Motion: 100-6400 (Normal), 100-3200 (D-Log M), 100-3200 (HLG)
• Photo: 100-6400 (12 MP), 100-3200 (50 MP)

Shutter Speed

• 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure), 50MP Photo: 1/8000-2 s

Max Image Size

• 8192×6144

Still Photography Modes

• Single Shot: 12 MP and 50 MP
• Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
• Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
• Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s

Photo Format

• JPEG/DNG (RAW)

Video Resolution

• H.264/H.265
• 4K: 3840×2160@24/25/30/48/50/60/120*fps
• FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps

* Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.

Video Format

• MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate

• H.264/H.265: 130 Mbps

* When shooting 4K/120fps video in D-Log M mode with DJI Mini 5 Pro, the video encoding bitrate can reach up to 130Mbps, corresponding to a video stream frame rate of 120fps. However, since slow-motion video files are encapsulated at 30fps, the video length displayed on the player is four times the recording duration, and the bitrate of the parsed encapsulated file is approximately one-fourth of the original encoding bitrate.

Supported File System

• exFAT

Color Mode and Sampling Method

• Normal (FHD): 8-bit 4:2:0 (H.264)
• Normal (FHD/4K): 10-bit 4:2:0 (H.265)
• HLG/D-Log M: 10-bit 4:2:0 (H.265)

Digital Zoom

• 12MP Photo: 1-3x
• 4K: 1-3x
• FHD: 1-4x

---



Gimbal

Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

• Tilt: -135° to 80°
• Roll: -230° to 95°
• Pan: -25° to 25°

Controllable Range

• Tilt: -90° to 55°
• Roll: -180° to 45°

Max Control Speed (tilt)

• 100°/s

Angular Vibration Range

• ±0.005°

---



Sensing

Sensing Type

• Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

Forward

• Measurement Range: 0.5-18 m<
• Detection Range: 0.5-200 m
• Effective Sensing Speed: Flight Speed ≤ 15 m/s
• FOV: Horizontal 90°, Vertical 72°

Backward

• Measurement Range: 0.5-18 m
• Effective Sensing Speed: Flight Speed ≤ 14 m/s
• FOV: Horizontal 90°, Vertical 72°

Lateral

• Measurement Range: 0.5-12 m
• Effective Sensing Speed: Flight Speed ≤ 14 m/s
• FOV: Horizontal 90°, Vertical 72°

Upward

• Measurement Range: 0.5-18 m
• Effective Sensing Speed: Flight Speed ≤ 6 m/s
• FOV: Front and Back 72°, Left and Right 90°

Downward

• Measurement Range: 0.3-14 m
• Effective Sensing Speed: Flight Speed ≤ 6 m/s
• FOV: Front and Back 106°, Left and Right 90°

Operating Environment

• Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 1)
• Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)

3D Infrared Sensor

• Forward-Facing LiDAR
• Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
• FOV: Up and Down 60°, Left and Right 60°
• Downward-Facing Infrared Sensor
• Measurement Range: 0.3-8 m (reflectivity > 10%)
• FOV: Front and Back 60°, Left and Right 60°

Video Transmission

• O4+

Live View Quality

• Remote Controller: 1080p/30fps, 1080p/60fps

Operating Frequency

• 2.400-2.4835 GHz
• 5.170-5.250 GHz
• 5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Transmitter Power (EIRP)

• 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
• 5.1 GHz: < 23 dBm (CE)
• 5.8 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE)

Max Transmission Distance (Unobstructed, Free of Interference)

• FCC: 20 km
• CE: 10 km
• SRRC: 10 km
• MIC: 10 km

Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

Max Transmission Distance (Unobstructed, With Interference)

• Strong Interference: Urban landscape, approx. 1.5-4 km
• Medium Interference: Suburban landscape, approx. 4-10 km
• Low Interference: Suburb/Seaside, approx. 10-20 km

Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (Obstructed, With Interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
• Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km

Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download Speed

• O4+: 10 MB/s (with DJI RC-N3 Remote Controller), 10 MB/s (with DJI RC 2)
• Wi-Fi 6: Up to 100 MB/s*

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

Lowest Latency

• Aircraft + Remote Controller: Approx. 120 ms

Depending on the actual environment and mobile device.

Antenna

• 4 antennas, 2T4R

---



Wi-Fi

Protocol

• 802.11 a/b/g/n/ac/ax

Operating Frequency

• 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmitter Power (EIRP)

• 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
• 5.8 GHz: < 26 dBm (FCC/SRRC), < 14 dBm (CE)

---



Bluetooth

Protocol

• Bluetooth 5.4

Operating Frequency

• 2.400-2.4835 GHz

Transmitter Power (EIRP)

• < 10 dBm

---



Battery

Capacity

• DJI Mini 5 Pro Intelligent Flight Battery: 2788 mAh
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: 4680 mAh

Weight

• DJI Mini 5 Pro Intelligent Flight Battery: approx. 71.9 g
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: approx. 117 g

Nominal Voltage

• DJI Mini 5 Pro Intelligent Flight Battery: 7.16 V
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: 7 V

Max Charging Voltage

• DJI Mini 5 Pro Intelligent Flight Battery: 8.6 V
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: 8.6 V

Battery Type

• Li-ion

Chemical System

• LiNiMnCoO2

Energy

• DJI Mini 5 Pro Intelligent Flight Battery: 19.52 Wh
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: 33.51 Wh

Charging Temperature

• 5° to 40° C (41° to 104° F)

Charging Time: DJI Mini 5 Pro Intelligent Flight Battery

• 1 battery can be fully charged in approx. 69 minutes by charging through the drone using the DJI 65W Portable Charger
• 1 battery can be fully charged in approx. 46 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger
• 3 batteries can be fully charged in approx. 115 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger

Charging Time: DJI Mini 5 Pro Intelligent Flight Battery Plus[2]

• 1 battery can be fully charged in approx. 94 minutes by charging through the drone using the DJI 65W Portable Charger
• 1 battery can be fully charged in approx. 56 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger
• 3 batteries can be fully charged in approx. 193 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger

---



Battery Charging Hub

Input

• USB-C: 5-15 V, max 4.3 A

Output

• Battery Port: 5-15 V, max 2 A

Charging Type

• DJI Mini 5 Pro Intelligent Flight Battery: Two batteries charged in parallel
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]: Three batteries charged in sequence

Compatibility

• DJI Mini 5 Pro Intelligent Flight Battery
• DJI Mini 5 Pro Intelligent Flight Battery Plus[2]

---



Storage

Recommended microSD Cards

• Lexar Silver plus 64GB A2 V30 microSDXC
• Lexar Silver plus 128GB A2 V30 microSDXC
• Lexar Silver plus 256GB A2 V30 microSDXC
• Lexar Silver plus 512GB A2 V30 microSDXC
• Lexar Silver plus 1TB A2 V30 microSDXC
• Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC
• Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC
• Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC
• Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC

---



DJI RC-N3 Remote Controller

Max Operating Time

• Without charging any mobile device: 3.5 hours
• When charging a mobile device: 1.5 hours

Max Supported Mobile Device Size

• 180 × 86 × 10 mm (L × W × H)

Operating Temperature

• -10° to 40° C (14° to 104° F)

Charging Temperature

• 5° to 40° C (41° to 104° F)

Charging Time

• 2 hours

Charging Type

• It is recommended to use a 5V/2A charger.

Battery Capacity

• 9.36 Wh (3.6 V, 2600 mAh)

Weight

• Approx. 320 g

Dimensions

• 104.2 × 150 × 45.2 mm (L × W × H)

Supported Mobile Device Port Type

• Lightning, USB-C, Micro-USB

Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately.

Video Transmission Operating Frequency

• 2.400-2.4835 GHz
• 5.170-5.250 GHz
• 5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Video Transmission Transmitter Power (EIRP)

• 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
• 5.1 GHz: < 23 dBm (CE)
• 5.8 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)

---



Notes:

1. Using the Intelligent Flight Battery, the maximum flight time is 36 minutes. This is measured with the drone flying forward at a constant speed of 21.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake and in photo mode, until forced landing due to low voltage. Always comply with local laws and regulations before flying.

2. The Intelligent Flight Battery Plus is not sold in Europe.
